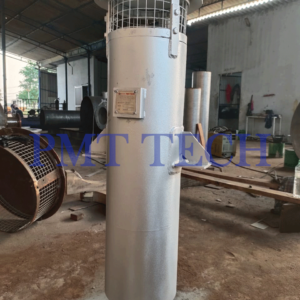

Autoclave Silencer

Advanced Steam Vent Noise Control System for Autoclave Applications

Overview

Autoclave Vent Silencers are specially engineered acoustic devices designed to attenuate the high-intensity noise generated during steam discharge from industrial autoclaves and sterilization systems. Autoclaves operate using saturated steam under pressure for sterilization and process heating applications, where periodic venting and pressure relief operations can generate extremely high sound pressure levels.

During sterilization cycles, steam released through safety relief valves, vent valves, and exhaust systems produces high-velocity turbulent flow, resulting in excessive noise exposure that may exceed permissible occupational and environmental limits.

The vent silencer is designed to reduce exhaust noise effectively while maintaining safe pressure relief performance and acceptable system back pressure.

Working Principle

When pressurized steam is discharged from the autoclave chamber, it enters the silencer through a specially engineered diffuser section designed to:

• Reduce steam velocity
• Distribute flow uniformly
• Minimize turbulence and shock generation
• Control pressure expansion

The steam then passes through acoustic attenuation chambers that reduce noise energy across a broad frequency spectrum.

The internal flow path is optimized to achieve:

• Maximum acoustic attenuation
• Minimal pressure drop
• Stable steam discharge characteristics
• Reliable thermal performance

Design Features

• High-efficiency steam diffuser assembly
• Heavy-duty pressure-retaining construction
• High-temperature acoustic insulation system
• Corrosion-resistant internal components
• Condensate drain connection
• Weather protection hood for outdoor installations
• Safety screen for foreign particle prevention
• Flanged or customized process connections
• Compact and maintenance-friendly configuration

Engineering Design Parameters

Each autoclave silencer is custom designed based on:

• Steam flow rate
• Operating pressure and temperature
• Venting cycle frequency
• Allowable back pressure
• Required outlet noise level
• Vent pipe configuration
• Installation environment

Acoustic and thermal calculations are performed to ensure compliance with project-specific operational and safety requirements.

Applications

Autoclave Vent Silencers are widely used in:

• Pharmaceutical Sterilization Systems
• Hospital Sterilization Units
• Food Processing Autoclaves
• Laboratory Sterilization Equipment
• Industrial Steam Sterilizers
• Chemical Processing Plants
• Pressure Vessel Vent Systems
• Steam Exhaust and Relief Applications

Performance Advantages

• Significant reduction in steam vent noise levels
• Optimized steam flow with low pressure drop
• Safe operation during pressure relief events
• Durable construction for continuous industrial use
• Reduced operator noise exposure
• Improved environmental noise compliance
• Compact and custom-engineered designs

Optional Configurations

• Vertical or horizontal installation
• Stainless steel hygienic construction
• High-capacity vent silencers
• Thermal insulation cladding
• Skid-mounted assemblies
• Custom inlet and outlet configurations
• Outdoor weatherproof execution
