Suction Silencer

Overview

A Suction Silencer is an engineered acoustic device installed at the inlet of compressors and blowers to reduce aerodynamic noise generated during fluid intake. It is a critical component in industrial air and gas handling systems where inlet turbulence and pressure fluctuations contribute significantly to overall system noise.

Compressor and blower noise is typically generated during:

• Suction (intake) of fluid
• Discharge of fluid
• Bypass or recycle flow

Among these, suction-side noise is a major contributor to airborne noise propagation into the surrounding environment.

Function and Working Principle

The suction silencer is mounted directly at the compressor or blower inlet to attenuate incoming noise before it enters the machine.

The system operates on the principle of absorptive acoustic attenuation combined with flow conditioning:

• Incoming air or gas passes through an acoustically lined chamber
• High-frequency noise is absorbed by sound-absorbing media
• Internal geometry straightens and stabilizes airflow
• Turbulence and vortex formation are minimized

This results in:

• Reduced inlet noise levels
• Improved flow uniformity into the compressor
• Stable aerodynamic performance

The design ensures that acoustic attenuation is achieved without adversely affecting compressor efficiency.

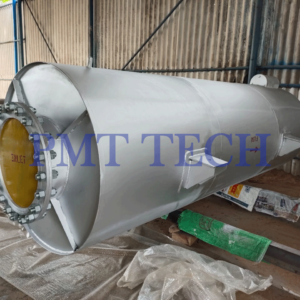

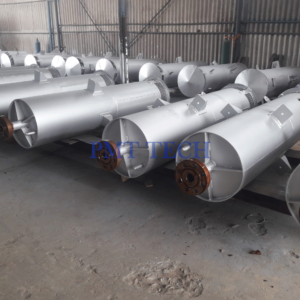

Design Construction

Suction silencers are typically manufactured with a robust industrial-grade construction suitable for continuous operation.

Key construction features include:

• Heavy-duty steel casing for structural strength
• Circular or cylindrical body configuration (standard design)

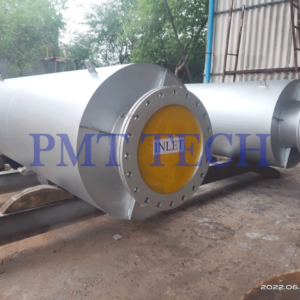

• Flanged inlet and outlet connections for secure installation
• Extended pipe compatibility for flexible piping arrangements
• Internal acoustic absorption elements with protective perforated liners
• Corrosion-resistant surface treatment options

The modular flanged design allows easy integration into existing compressor and blower systems.

Acoustic Design Principle

The suction silencer is primarily an absorptive-type acoustic device designed to attenuate:

• High-frequency aerodynamic noise
• Turbulence-induced inlet noise
• Flow separation noise

The acoustic media is selected based on:

• Frequency spectrum of compressor noise
• Air velocity
• Temperature conditions
• Required insertion loss

Engineering Considerations

Each suction silencer is engineered based on:

• Compressor or blower capacity
• Air/gas flow rate
• Inlet pressure conditions
• Permissible pressure drop
• Required noise attenuation level
• Duct and piping configuration
• Operating temperature and environment

The design ensures an optimal balance between acoustic performance and system efficiency.

Key Features

• Low pressure drop aerodynamic design
• High-efficiency inlet noise attenuation
• Robust steel construction for industrial applications
• Circular configuration for uniform flow distribution
• Flanged inlet and outlet for easy installation
• Suitable for continuous-duty operation
• Custom-engineered sizing and configurations

Applications

Suction silencers are widely used in:

• Centrifugal compressors
• Axial compressors
• Industrial air blowers
• Gas handling systems
• Petrochemical plants
• Power generation facilities
• Cement and steel industries
• HVAC and ventilation systems
• Process gas compression systems

Performance Advantages

• Significant reduction in inlet noise levels
• Improved compressor operating stability
• Minimal impact on pressure drop
• Enhanced airflow uniformity
• Durable construction for harsh environments
• Custom design for specific industrial requirements
